F5系列法兰组

详情介绍

型号说明

F5	-10	-W	A	-
型号说明	口径代号	接管尺寸	接管形式	法兰出入口
椭圆法兰	04:1/2 06:3/4 08:1 10:1 1/4 12:1 1/2 16:2 20:2 1/2 24:3 28:3 1/2 32:4	W：小尺寸无记号：大尺寸	A=螺纹连接型 B=插焊型 C=盲孔（盖板）	无记号：标准90 法兰

规格表

型号	口径 PT	尺寸 mm											O 形圈	内六角螺丝	工作压力 MPa
型号	口径 PT	C	D	E	F	G	J	K	L	N	Q	T	O 形圈	内六角螺丝	工作压力 MPa
F5-04-WA	3/8	40	54	17.5	38.1	8.8	30	10	3/8	-	-	13	P22	M8×40	25
F5-04-WB	3/8	40	54	17.5	38.1	8.8	30	10	-	9	17.8	13	P22	M8×40	25
F5-04-A	1/2	40	54	17.5	38.1	8.8	30	10	1/2	-	-	13	P22	M8×40	25
F5-04-B	1/2	40	54	17.5	38.1	8.8	30	10	-	11	22.2	13	P22	M8×40	25
F5-06-WA	1/2	48	65	22.2	47.6	11	30	15	1/2	-	-	19	G30	M10×45	25
F5-06-WB	1/2	48	65	22.2	47.6	11	30	15	-	12	27.7	19	G30	M10×45	25
F5-06-A	3/4	48	65	22.2	47.6	11	30	15	3/4	-	-	19	G30	M10×45	25
F5-06-B	3/4	48	65	22.2	47.6	11	30	15	-	12	27.7	19	G30	M10×45	25
F5-08-WA	3/4	55	70	26.2	52.4	11	30	15	3/4	-	-	26	G35	M10×45	25
F5-08-WB	3/4	55	70	26.2	52.4	11	30	15	-	12	27.7	26	G35	M10×45	25
F5-08-A	1	55	70	26.2	52.4	11	30	15	1	-	-	26	G35	M10×45	25
F5-08-B	1	55	70	26.2	52.4	11	30	15	-	14	34.5	26	G35	M10×45	25
F5-10-WA	1	64	80	30.2	58.7	11	30	17	1	-	-	32	G40	M10×50	25
F5-10-WB	1	64	80	30.2	58.7	11	30	17	-	14	34.5	32	G40	M10×50	25
F5-10-A	11/4	64	80	30.2	58.7	11	30	17	11/4	-	-	32	G40	M10×50	25
F5-10-B	11/4	64	80	30.2	58.7	11	30	17	-	16	43.2	32	G40	M10×50	25
F5-12-WA	11/4	72	94	35.7	69.9	13.5	30	17	11/4	-	-	38	G50	M12×50	25
F5-12-WB	11/4	72	94	35.7	69.9	13.5	30	17	-	16	43.2	38	G50	M12×50	25
F5-12-A	11/2	72	94	35.7	69.9	13.5	30	17	11/2	-	-	38	G50	M12×50	25
F5-12-B	11/2	72	94	35.7	69.9	13.5	30	17	-	18	49.1	38	G50	M12×50	25
F5-16-WA	11/2	85	102	42.9	77.8	13.5	30	17	11/2	-	-	48	G60	M12×50	25
F5-16-WB	11/2	85	102	42.9	77.8	13.5	30	17	-	18	49.1	48	G60	M12×50	25
F5-16-A	2	85	102	42.9	77.8	13.5	30	17	2	-	-	51	G65	M12×50	17.5
F5-16-B	2	85	102	42.9	77.8	13.5	30	17	-	20	61.1	51	G65	M12×50	17.5
F5-20-WA	2	102	114	50.8	88.9	13.5	40	17	2	-	-	63	G75	M12×60	17.5
F5-20-WB	2	102	114	50.8	88.9	13.5	40	17	-	20	61.1	63	G75	M12×60	17.5
F5-20-A	21/2	102	114	50.8	88.9	13.5	40	17	21/2	-	-	63	G75	M12×60	17.5
F5-20-B	21/2	102	114	50.8	88.9	13.5	40	17	-	22	77.1	63	G75	M12×60	17.5
F5-24-WA	21/2	116	135	61.9	106.4	17.5	50	17	21/2	-	-	76	G85	M16×70	17.5
F5-24-WB	21/2	116	135	61.9	106.4	17.5	38	17	-	22	77.1	76	G85	M16×55	17.5
F5-24-A	3	116	135	61.9	106.4	17.5	50	17	3	-	-	76	G85	M16×70	17.5
F5-24-B	3	116	135	61.9	106.4	17.5	38	17	-	25	90	76	G85	M16×55	17.5
F5-28-WA	3	134	153	69.9	120.7	17.5	50	17	3	-	-	88	G100	M16×70	17.5
F5-28-WB	3	134	153	69.9	120.7	17.5	38	17	-	25	90	88	G100	M16×55	17.5
F5-28-A	31/2	134	153	69.9	120.7	17.5	50	17	31/2	-	-	88	G100	M16×70	17.5
F5-28-B	31/2	134	153	69.9	120.7	17.5	38		-	28	102.8	88	G100	M16×55	17.5
F5-32-WA	31/2	150	162	77.8	130.2	17.5	50	17	31/2	-	-	101	G115	M16×70	17.5
F5-32-WB	31/2	150	162	77.8	130.2	17.5	38	17	-	-	-	101	G115	M16×55	17.5
F5-32-A	4	150	162	77.8	130.2	17.5	50	17	4	-	-	101	G115	M16×70	17.5
F5-32-B	4	150	162	77.8	130.2	17.5	38	17	-	13.5	115.5	101	G115	M16×55	17.5

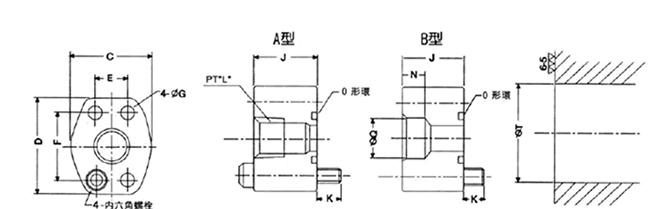

外形尺寸图

规格表

型号	口径 PT	尺寸 mm											O 形圈	内六角螺丝	工作压力 MPa
型号	口径 PT	C	D	E	F	G	J	K	L	N	Q	T	O 形圈	内六角螺丝	工作压力 MPa
F5-04-WA	3/8	40	54	17.5	38.1	8.8	30	10	3/8	-	-	13	P22	M8×40	25
F5-04-WB	3/8	40	54	17.5	38.1	8.8	30	10	-	9	17.8	13	P22	M8×40	25
F5-04-A	1/2	40	54	17.5	38.1	8.8	30	10	1/2	-	-	13	P22	M8×40	25
F5-04-B	1/2	40	54	17.5	38.1	8.8	30	10	-	11	22.2	13	P22	M8×40	25
F5-06-WA	1/2	48	65	22.2	47.6	11	30	15	1/2	-	-	19	G30	M10×45	25
F5-06-WB	1/2	48	65	22.2	47.6	11	30	15	-	12	27.7	19	G30	M10×45	25
F5-06-A	3/4	48	65	22.2	47.6	11	30	15	3/4	-	-	19	G30	M10×45	25
F5-06-B	3/4	48	65	22.2	47.6	11	30	15	-	12	27.7	19	G30	M10×45	25
F5-08-WA	3/4	55	70	26.2	52.4	11	30	15	3/4	-	-	26	G35	M10×45	25
F5-08-WB	3/4	55	70	26.2	52.4	11	30	15	-	12	27.7	26	G35	M10×45	25
F5-08-A	1	55	70	26.2	52.4	11	30	15	1	-	-	26	G35	M10×45	25
F5-08-B	1	55	70	26.2	52.4	11	30	15	-	14	34.5	26	G35	M10×45	25
F5-10-WA	1	64	80	30.2	58.7	11	30	17	1	-	-	32	G40	M10×50	25
F5-10-WB	1	64	80	30.2	58.7	11	30	17	-	14	34.5	32	G40	M10×50	25
F5-10-A	11/4	64	80	30.2	58.7	11	30	17	11/4	-	-	32	G40	M10×50	25
F5-10-B	11/4	64	80	30.2	58.7	11	30	17	-	16	43.2	32	G40	M10×50	25
F5-12-WA	11/4	72	94	35.7	69.9	13.5	30	17	11/4	-	-	38	G50	M12×50	25
F5-12-WB	11/4	72	94	35.7	69.9	13.5	30	17	-	16	43.2	38	G50	M12×50	25
F5-12-A	11/2	72	94	35.7	69.9	13.5	30	17	11/2	-	-	38	G50	M12×50	25
F5-12-B	11/2	72	94	35.7	69.9	13.5	30	17	-	18	49.1	38	G50	M12×50	25
F5-16-WA	11/2	85	102	42.9	77.8	13.5	30	17	11/2	-	-	48	G60	M12×50	25
F5-16-WB	11/2	85	102	42.9	77.8	13.5	30	17	-	18	49.1	48	G60	M12×50	25
F5-16-A	2	85	102	42.9	77.8	13.5	30	17	2	-	-	51	G65	M12×50	17.5
F5-16-B	2	85	102	42.9	77.8	13.5	30	17	-	20	61.1	51	G65	M12×50	17.5
F5-20-WA	2	102	114	50.8	88.9	13.5	40	17	2	-	-	63	G75	M12×60	17.5
F5-20-WB	2	102	114	50.8	88.9	13.5	40	17	-	20	61.1	63	G75	M12×60	17.5
F5-20-A	21/2	102	114	50.8	88.9	13.5	40	17	21/2	-	-	63	G75	M12×60	17.5
F5-20-B	21/2	102	114	50.8	88.9	13.5	40	17	-	22	77.1	63	G75	M12×60	17.5
F5-24-WA	21/2	116	135	61.9	106.4	17.5	50	17	21/2	-	-	76	G85	M16×70	17.5
F5-24-WB	21/2	116	135	61.9	106.4	17.5	38	17	-	22	77.1	76	G85	M16×55	17.5
F5-24-A	3	116	135	61.9	106.4	17.5	50	17	3	-	-	76	G85	M16×70	17.5
F5-24-B	3	116	135	61.9	106.4	17.5	38	17	-	25	90	76	G85	M16×55	17.5
F5-28-WA	3	134	153	69.9	120.7	17.5	50	17	3	-	-	88	G100	M16×70	17.5
F5-28-WB	3	134	153	69.9	120.7	17.5	38	17	-	25	90	88	G100	M16×55	17.5
F5-28-A	31/2	134	153	69.9	120.7	17.5	50	17	31/2	-	-	88	G100	M16×70	17.5
F5-28-B	31/2	134	153	69.9	120.7	17.5	38		-	28	102.8	88	G100	M16×55	17.5
F5-32-WA	31/2	150	162	77.8	130.2	17.5	50	17	31/2	-	-	101	G115	M16×70	17.5
F5-32-WB	31/2	150	162	77.8	130.2	17.5	38	17	-			101	G115	M16×55	17.5
F5-32-A	4	150	162	77.8	130.2	17.5	50	17	4			101	G115	M16×70	17.5
F5-32-B	4	150	162	77.8	130.2	17.5	38	17	-	13.5	115.5	101	G115	M16×55	17.5

产品型号
