螺纹式插装减泄压阀-引导、平衡滑柱型

●直接作用减泄压阀使用引导作用之动作,只选其一。
●依压力差和结构大小决定内漏(33~50cc/min)。
●由于快速反应和低内漏，阀较适合储能器和刹车回路。
●油口3的压力不超过210bar。
●Direct acting reducing/relieving valve used us altenative to pilot operated version.
●Internal leakage(33～55cc/min)depeding on pressare differential and frame size
●Due to fast response an low leakage valve is well suited for accumulator and brake circuits
●Maximum pressure at port 3 (tank) is 210bar

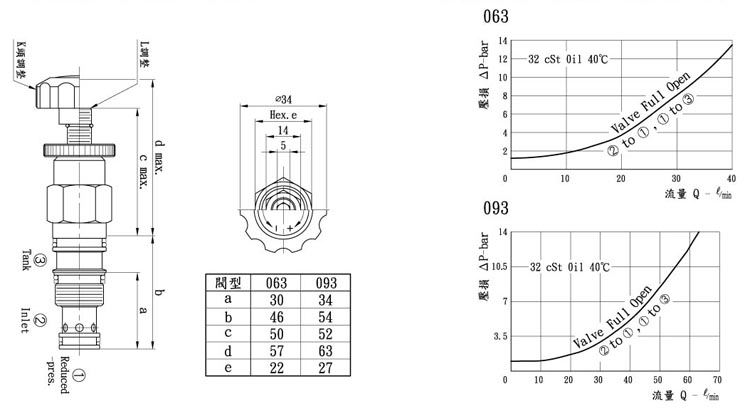

型号 Model	阀系说明 Description	额定流量 Rated Flow	最高压力 Max.pressure	重量 Weight
CRR-063	引导型 Pilot operated 平衡滑柱式 Balanced spool	请参阅压损曲线表	315bar	0.63:K:0.17Kg         L:0.14Kg 0.93:K:0.29Kg          L:0.25Kg

CRR	063	L	10	N
系列编号： 减泄压阀 Series No. Reducing/Relieving Valves	阀孔型号 Cavity Size C063 C093	调整方式 Controls L-螺杆调整 Standard Screw Adjustment K-旋钮调整 Hand Knob & Locknob Adj.	压力调整范围 Adjustment Ranges. 10-3.5 to 100 bar. 20-7 to 210 bar.	油封材质 Seals:N-丁腈橡胶 Buna N. V-氟橡胶 Viton.
