螺纹式插装导开阀-导压、提动式

●液控单向阀是非调节的开关阀仅使用负荷锁固，因此不提供流畅的运动控制。
●允许经一单向阀自由流通由2口到1口，反流封闭直到一正比于负荷压力在3口打开才由1口流到2口。
●Pilot to open check valves are non modulating on/off valves used for load locking only and do not provide smooth motion control.
●They allow free flow from port 2 to 1 then block reverse flow until a pilot pressure directly proportional to the load pressure is sensed at port 3 enabling a pilot a pilot piston to push the poppet off its seat.

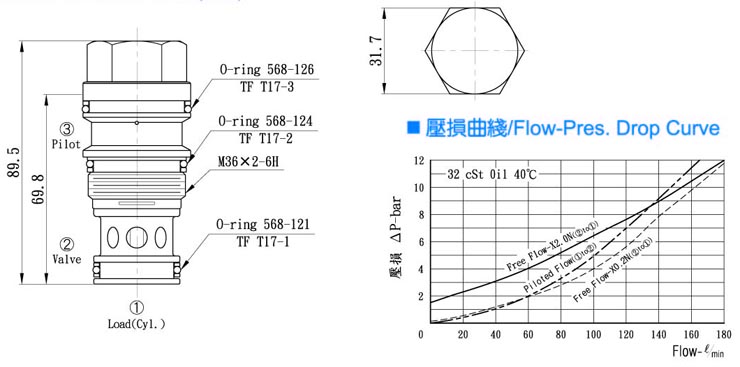

注:阀孔型号:Valve Cavity:T17
成型刀具 Cavity Tools:CT17-D.CT17R
请参阅 Reference P103

型号 Model	阀系说明 Description	额定流量 Rated Flow	最高压力 Max.pressure	重量 Weight
CPF-T17	提动式 Poppet type 4:5:1导压比 4:5:1pilot ratio	160ℓ/min	315bar	0.52Kg

CPF	T17	X	0.2	N
系列编号： 导开阀 Series No. pilot to open Check Valves	阀孔型号 Cavity Size	调整方式 Controls X-标准型 Standard Type	单向阀开阀压 Cracking pressure 0.2-0.2 bar 2.0-2.5 bar	油封材质 Seals:N-丁腈橡胶 Buna N. V-氟橡胶 Viton.
