螺纹式插装单向阀-提动式
详情介绍
特性/Characteristic:
●单向阀允许自由流在一个方向和在另一个方向锁固流量。
●低内泄漏量小于1滴/分钟。
●破裂压力0.2-7bar。
●Check valve allow free flow in one direction and blocked flow in the other direction and blocked flow in the other direction.
●Low leakage of cracking pressures available from 0.2 to 7 bar.
●Extensive range of cracking pressuress available from 0.2 to 7 bar.
注:阀孔型号:Valve Cavity:C162
成型刀具 Cavity Tools:CT26-D.CT26-R
请参阅 Reference P94
●低内泄漏量小于1滴/分钟。
●破裂压力0.2-7bar。
●Check valve allow free flow in one direction and blocked flow in the other direction and blocked flow in the other direction.
●Low leakage of cracking pressures available from 0.2 to 7 bar.
●Extensive range of cracking pressuress available from 0.2 to 7 bar.
注:阀孔型号:Valve Cavity:C162
成型刀具 Cavity Tools:CT26-D.CT26-R
请参阅 Reference P94
性能表/Specification:
| 型号 Model |
阀系说明 Description |
额定流量 Rated Flow |
最高压力 Max.pressure |
重量 Weight |
| CCV-162 | 提动式 Poppet type |
150ℓ/min |
250bar | 0.25Kg |
选购指南/How to order:
| CCV | 162 | X | 0.2 | N |
| 系列编号： 单向阀 Series No. Check Valves |
阀孔型号 Cavity Size |
调整方式 Controls X-不可调整 Non-adjustable |
单向阀开阀压 Cracking pressure 0.2-0.2 bar 2.0-1.8 bar 4.0-3.5 bar |
油封材质 Seals:N-丁腈橡胶 Buna N. V-氟橡胶 Viton. |

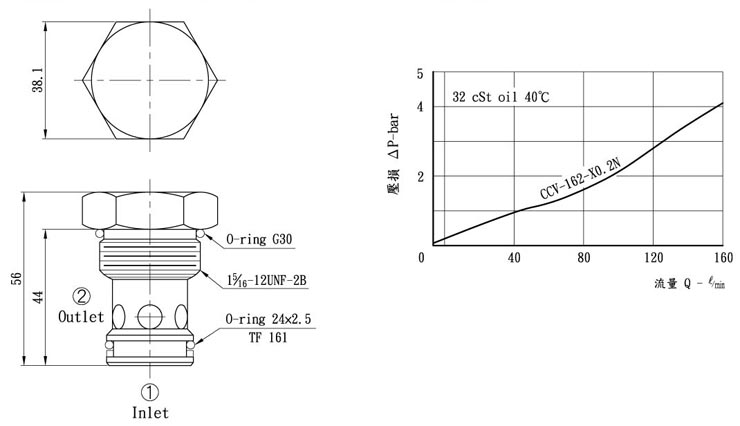

尺寸图/Dimensions(mm)
产品型号
